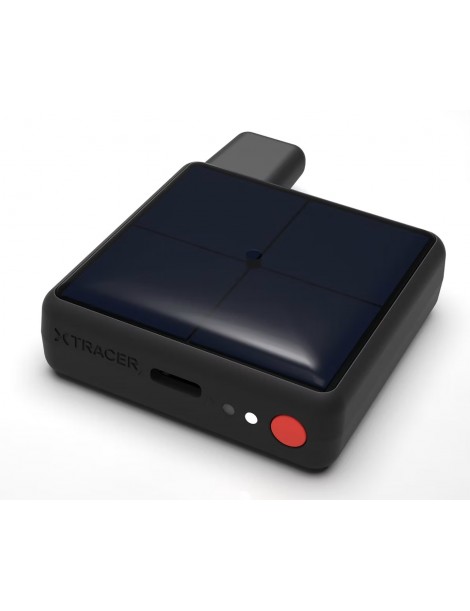

XC Tracer Mini V / 5

Thanks to delay-free display of climb / sink, finding and centering thermals with a Mini V is much easier than with a conventional variometer.

And you can set the tones of the variometer as you like, please use the tone simulator here.

GPS Logger

The XC Tracer Mini V simultaneously records IGC and KML files, the IGC files are recognized by the FAI for paragliding competitions. And the KML files can be viewed directly on Google Earth.

Excellent autonomy

Don't be surprised if you never have to recharge the vario during a whole season! The Vario has a built-in lithium-polymer battery, which is fully charged for about 25 hours of continuous operation, including operation of ADS-L, FANET and FLARM, data transmission via BLE and recording of IGC and KML files. But since the battery recharges during the flight by the built-in solar cells, the autonomy is almost unlimited. The battery can also be recharged via the included USB - C cable if needed.

Safety first

The Mini V has a built-in ADS-L, FANET and FLARM to protect you from collisions. Want to know where your buddies are on the road? If you carry a smartphone with a suitable app, that's no problem. The app receives the ADS-L / FANET position signals of your buddies via the Bluetooth channel of your Mini V and displays them on your phone. With some apps you can even send text messages to your buddies via Bluetooth and FANET. Logically, your own Mini V also continuously transmits your position via ADS-L, FANET and FLARM. Together with the XC Tracer Maxx II, the Mini V is one of the few Varios in the world that is certified according to the strict FCC criteria.

In the worst case scenario, if a buddy doesn't show up in the evening, you can check your smartphone app to see where your buddy's vario last sent a ADS-L or FANET signal from. If the app supports it, you'll find latitude, longitude, altitude, and status. This info can be very helpful in locating a missing paraglider.

Bluetooth

The XC Tracer Mini V is equipped with a BLE 4.2 module (Bluetooth Low Energy). So you can connect your app (see list) on your Android / iOS / e-reader to the vario via BLE.

Simply

One button and that's it. The button is used to turn the device on and off and to change the volume of the from 0 (no sound) to 4 (loud).

The configuration of the vario is done via an intuitive text file. If you have a problem with the vario or don't know how to set something please read here.

Flightlog

As a flight log we recommend the LogFly software. Intuitive and compatible with XC Tracer, LogFly does everything automatically and provides a lot of interesting information and statistics.

Technical data

• Size: 69.5 x 49.5 x 16.5 mm

• Weight 46g

• Solar cell with 22.5% efficiency

• 25h battery life without sunshine

• Easy operation

• Delay free indication of climb/descent

• ADS-L / FANET / FLARM, miniaturized antenna

• ADS-L / FANET display of position and altitude of buddies

• Open source obstacle database

• Data transfer via BLE to mobile phone/tablet/e-reader

• IGC and KML logger, approved by FAI for competitions

• Many compatible apps for Android/iOS

• Freely configurable sound settings/sound simulator on xctracer.com

• Accelerometer/Compass/Gyro/Baro/GPS/BLE/ADS-L/FANET/FLARM

• GPS module with simultaneous reception of GPS and Galileo

• Drag & drop firmware update, USB-C connector

• CE & FCC certification

• Swiss made

Zero lag accuracy

Preferred by top competition pilots, the XC Tracer provides the core much faster due to its accuracy without lag.

The Mini V has the most sensitive internal accelerometer on the market yet. Exact allocation information is transmitted

to XCTrack. If you lose the core, you will find it faster.

Best in class GPS

GPS receives GPS as well as Glosnass and Galileo and thus offers improved positioning compared to conventional GPS instruments.

Solar powered - The Mini V

XC Tracer Mini V will hold its charge for 20 hours in low light.

Light
The Mini V is perfect for competitions through to vol-bivouacs and weighs only 34 grams,

and the XC Tracer Maxx II is also a light version, weighing only 120 g.

IGC and KML logging
XC Tracer is suitable for all competitions and flying in the XC League and outputs both IGC and KML files.

Thermal sniffing
Optional thermal sniffing function for advanced searches.

Fully customizable
Tones, sensitivity, thermal sniffing, and other features are easy to customize - or just download your favorite pilot's settings.

Complete integration
Links via Bluetooth and USB to XCTrack, FlySkyHy and other leading flight computer apps.

Swiss made

Made in Switzerland, the home of precision instrumentation.
